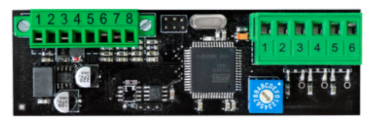

RGB control board

RGB controller with CANopen interface

Control of an RGB LED color band 12/24V, with the intention of displaying various machine states. Available as a PCB version or in a housing for mounting on a DIN rail. The output drivers can be loaded with up to 4 A per channel. The module is controlled via CANopen.

Details

Power supply	24 V DC
Input signals	4 digital inputs (option)
Output signals	3 output drivers 12/24V, 4A LowSide each
Interfaces	DS301 CANopen
Operating temperature	0 - 40 °C
Storage temperature	-20 - + 65 °C
Humidity	max 90%
Mounting position	any
Protection class	IP00
Dimensions	34 x 108 x 55 mm (W x H x D)
